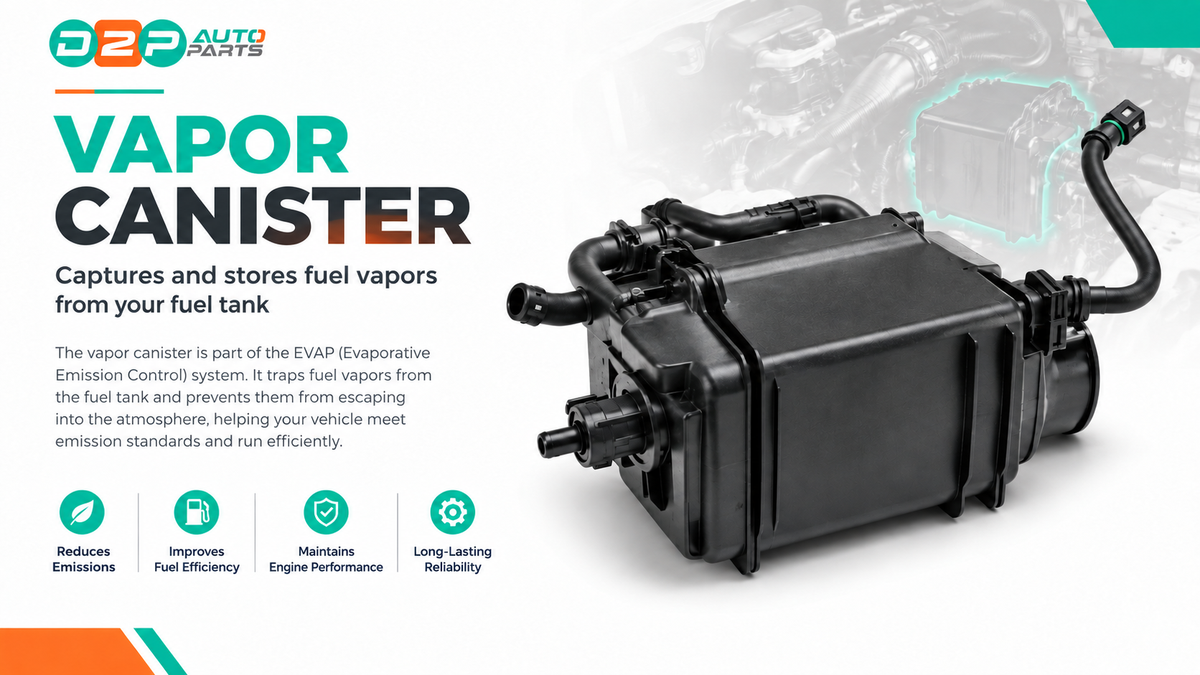

Understanding Charcoal Vapor Canisters: Function, Failure & Replacement
Learn how your vehicle's emission control system captures fuel vapors, recognize warning signs of failure, and understand the replacement process.
Every modern vehicle contains a sophisticated emissions control system designed to prevent fuel vapors from escaping into the atmosphere. At the heart of this system sits the charcoal vapor canister—a component that silently captures volatile organic compounds that evaporate from the fuel tank. When this critical system fails, it can trigger check engine lights, failed emissions tests, and even compromised engine performance.
Top 5 Symptoms of a Failing Charcoal Canister
Primary Causes of Charcoal Canister Failure
The charcoal canister typically lasts 10 to 15 years under normal operating conditions, but several factors can accelerate failure:
- Canister Saturation: Over time, the activated carbon reaches maximum absorption capacity and can no longer trap fuel vapors. Aggressive driving, hot climates, and frequent short trips accelerate saturation.
- Water Contamination: Moisture entering the charcoal canister through damaged seals or condensation can degrade the activated carbon and reduce vapor absorption efficiency.
- Fuel System Leaks: Leaks in fuel injectors, fuel pressure regulators, or fuel lines cause excess vapors that overwhelm the canister's capacity.
- Purge Valve Malfunction: A faulty purge valve prevents the canister from properly purging stored vapors, causing accumulation and pressure buildup within the system.
- Age and Material Degradation: Extreme temperature cycles, vibration, and chemical exposure cause rubber seals and internal structures to deteriorate, compromising system integrity.
How to Replace a Charcoal Canister
- 🔍 1. Professional Diagnosis: Confirm EVAP system faults using a diagnostic scanner. Verify that the issue originates from the canister and not the purge valve, fuel cap, or fuel lines. Some shops use smoke tests to identify leaks throughout the EVAP system.
- 🔧 2. Component Location & Access: The charcoal canister is typically mounted beneath the vehicle near the fuel tank or under the rear quarter panel. Locate the specific mounting position according to your vehicle's service manual.
- 🧰 3. Fuel System Depressurization: Safely relieve fuel system pressure by disconnecting the fuel pump relay or using the manufacturer's depressurization procedure. Disconnect the negative battery terminal to prevent accidental fuel pump operation.
- 🔗 4. Hose and Connector Removal: Disconnect all vapor lines, purge lines, fuel lines, and electrical connectors attached to the charcoal canister. Take photos during disassembly to ensure correct reassembly.
- 🔧 5. Canister Removal and Replacement: Unbolt the canister mounting brackets and carefully remove the assembly. Install the new OEM-spec canister, reconnect all hoses and connectors, and torque mounting bolts to manufacturer specifications.
- ✅ 6. System Testing & Code Clearing: After installation, start the engine and allow the vehicle to run for several drive cycles (a mix of city and highway driving). The diagnostic system will complete its self-test. Clear any remaining fault codes using a diagnostic scanner, and perform a final emissions test.
Frequently Asked Questions
Everything you need to know about charcoal canisters and emission system maintenance
How much does it cost to replace a charcoal canister?
Total replacement costs depend on your vehicle's make, model, and labor rate in your area. Here's a typical cost breakdown:
- Part Cost: OEM-quality charcoal canisters typically range from $150 to $400.
- Labor Cost: Professional installation averages between $200 and $500, depending on canister accessibility and fuel system complexity.
- Total Range: Most drivers can expect total repair costs between $350 and $900.
DIY replacement is feasible for mechanically inclined owners, as the procedure requires only basic tools and careful attention to fuel system safety protocols.
Can I drive with a faulty charcoal canister?
Technically, a vehicle with a failed charcoal canister will continue to run. However, driving with this condition is not recommended for several important reasons:
- Failed Emissions Testing: Your vehicle will not pass state or federal emission inspections, potentially preventing registration renewal.
- Fuel System Damage: Unregulated vapor buildup can damage fuel injectors, fuel pressure regulators, and the catalytic converter over time.
- Environmental Impact: Without an operational canister, volatile organic compounds are released into the atmosphere, contributing to air pollution and smog formation.
- Performance Issues: Excess fuel vapors entering the engine cause rough idle, poor throttle response, and reduced fuel economy.
Early diagnosis and prompt replacement are strongly advised to prevent cascading system failures.
What is the difference between an OEM canister and an aftermarket replacement?
The quality and compatibility of your replacement canister directly affect emission system performance:
- OEM (Original Equipment Manufacturer): Manufactured to exact factory specifications, OEM canisters are engineered to match your vehicle's fuel system design and diagnostic monitoring. They typically cost more but offer superior reliability and longevity.
- Aftermarket Replacements: Third-party manufacturers produce lower-cost alternatives, but quality and dimensional accuracy vary significantly. Some aftermarket units may not seal properly or contain inadequate charcoal media.
For peace of mind and emission system integrity, OEM-quality replacements are highly recommended over budget aftermarket options.
How long does a charcoal canister typically last?
Under normal driving conditions, a charcoal canister typically lasts 10 to 15 years before requiring replacement. However, several factors can extend or shorten this lifespan:
- Driving Habits: Aggressive driving and frequent short trips accelerate canister saturation and reduce component life.
- Climate: Hot climates increase fuel vaporization rates, causing the canister to saturate more rapidly.
- Vehicle Maintenance: Regular fuel system inspections and prompt repairs to fuel leaks help preserve canister longevity.
- Fuel Quality: Contaminated or low-quality fuel can accelerate charcoal degradation and reduce absorption capacity.
Routine emission system maintenance and early detection of performance issues can significantly extend the operational life of your charcoal canister.
What does the "P0440" fault code mean?
P0440 is the OBD-II diagnostic trouble code for "EVAP System Malfunction." This code indicates that your vehicle's on-board diagnostic system has detected a problem within the Evaporative Emission Control system. The code is triggered when:
- The charcoal canister is saturated or no longer absorbs fuel vapors effectively.
- A purge valve is stuck open or closed, preventing proper vapor circulation.
- Hoses or seals are cracked, allowing fuel vapors to escape.
- The fuel cap is loose or damaged, allowing external air to enter the fuel system.
P0440 requires professional diagnosis using a diagnostic scanner to pinpoint the exact EVAP component causing the fault. Start with the simplest solutions (checking the fuel cap) before proceeding to more complex repairs.
